stone machinery How to install the bridge ​cutting machine​

Time：2017-08-22 Hits：2497

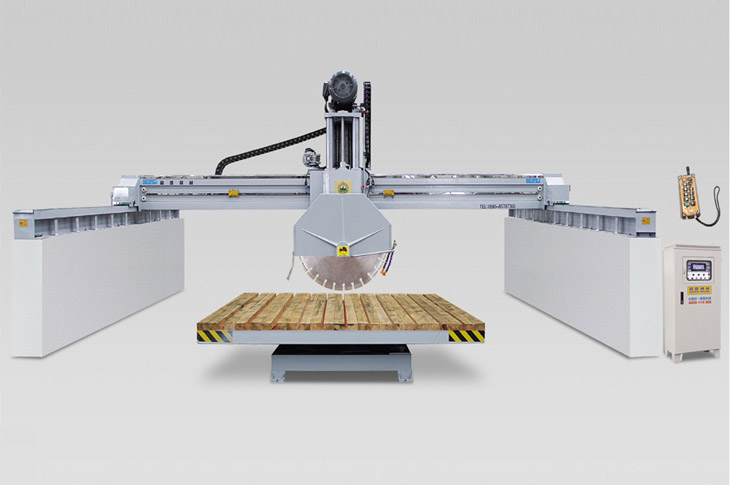

How to install the bridge cutting machine

    Stone cutting equipment in the course of the use of non-compliance with the operating code, the equipment is likely to fail and can not function properly.Bridge cutting machine is the case,Hesheng bridge cutting machine with a great span of bridge structure, while the application of hydraulic system to cut more efficient, more accurate positioning, smooth operation and safety.Before the use of bridge cutting machine, we must complete the assembly, in order to ensure the normal use of bridge cutting machine. In the assembly process, we should pay attention to what aspects of it.

    1. Before the assembly of the bearing should be cleaned, remove the anti-rust paint before assembly; cleaning should pay attention to check the raceway and rolling body with or without corrosion, rotation is flexible; bearing assembly should be coated with a layer of lubricating oil, If the pressure difference between the discovery of the pressure is too large, should stop the assembly to check; bearing assembly, no model of the end should be in the direction, by the shoulder; set bearing when the force of the larger direction, the location should be appropriate, This rolling force, should be even symmetrical beating, not slam, to ensure that the end of the vertical axis and to prevent the installation of tilt.

     2. Threaded connection should be used to prevent the device, according to the actual situation and design requirements of the following commonly used anti-loose device; double nuts loose; spring washers loose; open pin anti-loose; stop washers round loose nuts and flower mat ; Symmetrical multiple bolt tightening method should be used to gradually tighten the order of symmetry, the bar connector should be symmetrical from the middle to the two sides gradually tightened. The tail of the ribs to be bolted should protrude the nut.

     3. do a good job of driving pre-check work. For example, check the completeness of the assembly work, the accuracy and reliability of each connection, the flexibility of the movement of the movement, the normalness of the lubrication system, and so on.

     4. According to a variety of stone machinery products to test the conditions of test run, the detection of the project. For example: the knife speed and stroke adjustment and testing, lift movement stroke adjustment, spindle rotation accuracy test.
